Project Design
Sat, 01/22/2022 - 17:24 — afd100

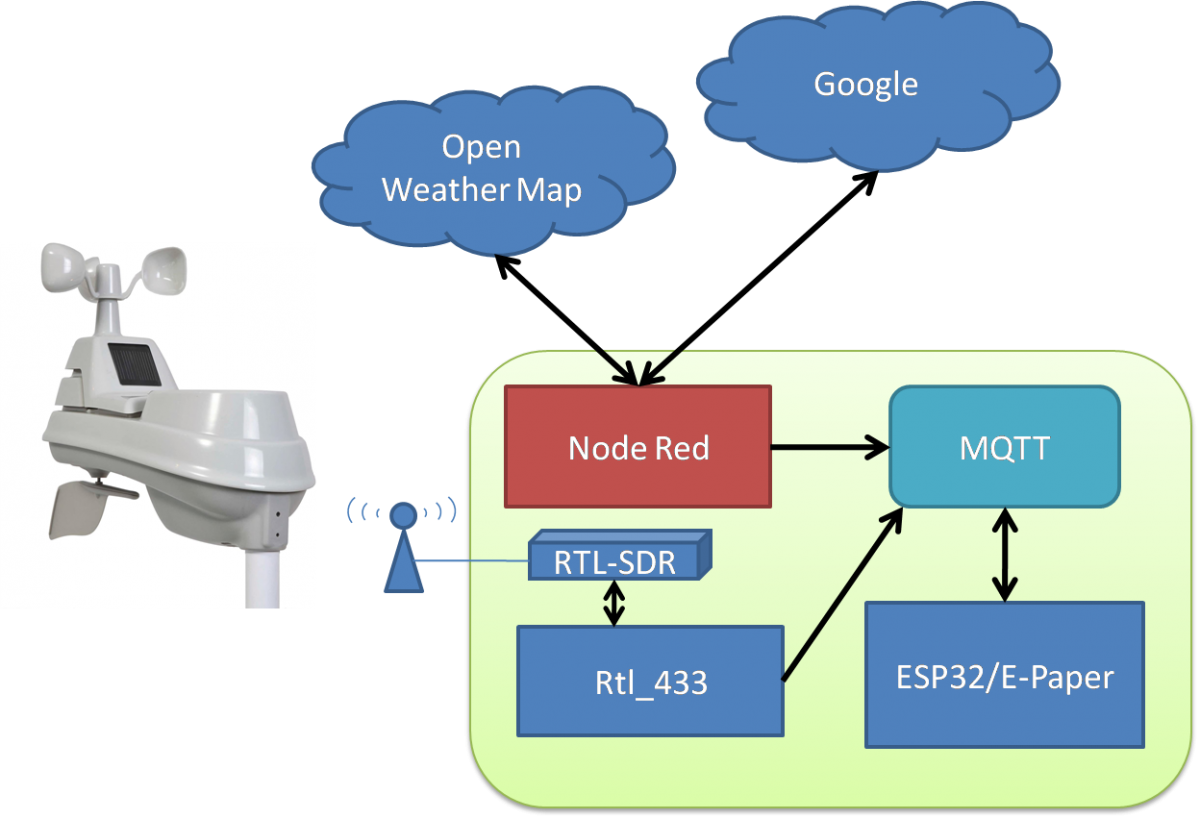

As shown above, the major componenets of the system are:
In home weather information
- AccuRite 5-in-1 outdoor weather station
- RTL-SDR and antenna
- rtl_sdr application controlling the RTL-SDR
- A networked computer to run rtl_433
Communication, calculation and broker components
- NodeRed application and applicable plugins to talk to OpenWeatherMap and Google
- MQTT broker instance
- A server to run the NodeRed isntance and MQTT broker
Edge device to display the acquired information
- ESP32 and E-Paper/E-Ink display
- 3D printed case and stand
Each of the components are described on the following pages.
